Section A - Low alloy steels
|
|
|
|
|
|
This section includes electrodes suitable for welding general
engineering and structural steels, from medium tensile grain-refined CMn and semi-cryogenic steels (approximately –75°C) to specialised
heat and creep-resistant CrMo types reaching the
threshold of stainlessness at 12%Cr. |
|
|
Flux coverings of all electrodes are of all-positional basic low-hydrogen
type and employ binders giving high resistance to moisture absorption.
All flux cored wires are rutile all-positional types also with low hydrogen
potential. |
|
|
Data Sheet |
Alloy |
Process |
Product |
Specifications |
|
|
AWS |
BS EN / BS EN ISO |
||||
|
Cr-Mo creep resisting consumables
mainly for the power generation industry |
|||||
|
½Mo |
MMA |
Mo.B |
E7018-A1 |
E Mo B |
|
|
TIG/MIG |
CMo |
ER70S-A1 |
MoSi |
||
|
-- |
½Cr1Mo |
MMA |
11CM |
E8016-B5 |
-- |
|
1¼Cr½Mo |
MMA |
Chromet 1 |
E8018-B2 |
E CrMo1 B |
|
|
Chromet 1L |
E7015-B2L |
E CrMo1L B |
|||
|
Chromet 1X |
E8018-B2 |
E CrMo1 B |
|||
|
TIG/MIG |
1CrMo |
-- |
CrMo1Si |
||
|
ER80S-B2 |
ER80S-B2 |
-- |
|||
|
SAW |
SA 1CrMo |
EB2 |
CrMo1 |
||
|
FCW |
Cormet 1 |
E81T1-B2 |
T55T1-1C/M-1CM |
||
|
2¼Cr1Mo |
MMA |
Chromet 2 |
E9018-B3 |
E CrMo2 B |
|
|
Chromet 2L |
E8015-B3L |
E CrMo2L B |
|||
|
Chromet 2X |
E9018-B3 |
E CrMo2 B |
|||
|
TIG/MIG |
2CrMo |
-- |
CrMo2Si |
||
|
ER90S-B3 |
ER90S-B3 |
-- |
|||
|
SAW |
SA 2CrMo |
EB3 |
CrMo2 |
||
|
FCW |
Cormet 2 |
E91T1-B3 |
T62T1-1C/M-2CM |
||
|
Cormet 2L |
E91T1-B3L |
T62T1-1C/M-2CML |
|||
|
CrMoV |
MMA |
Chromet 1V |
-- |
ECrMoV1 B |
|
|
13CMV |
-- |
(ECrMoV1 B) |
|||
|
FCW |
Cormet 1V |
-- |
-- |
||
|

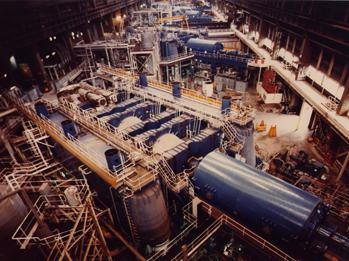

Drax
Power Station UK - Its generating capacity of 3,960 megawatts, the highest in
Western Europe, meets about 7% of the UK’s electrical power demand. It is the
cleanest and one of the most efficient coal-fired power stations in the UK.
Most recently Cormet 2 was used during the
fabrication of replacement main steam manifold branch sections. |
|
Data Sheet |
Alloy |
Process |
Product |
Specifications |
|
|
AWS |
BS EN / BS EN ISO |
||||
|
Cr-Mo creep resisting
consumables mainly for the power generation industry – (continued) |
|||||
|
5CrMo |
MMA |
Chromet 5 |
E8015-B6 |
E CrMo5 B |
|
|
TIG/MIG |
5CrMo |
ER80S-B6 |
CrMo5Si |
||
|
FCW |
Cormet 5 |
E81T1-B6 |
T55T1-1C/M-5CM |
||
|
9CrMo |
MMA |
Chromet 9 |
E8015-B8 |
E CrMo9 B |
|
|
TIG/MIG |
9CrMo |
ER80S-B8 |
CrMo9Si |
||
|
FCW |
Cormet 9 |
E81T1-B8 |
T55T1-1C/M-9C1M |
||
|
P91 |
MMA |
Chromet 9MV-N |
E9015-B9 |
E CrMo91 B |
|
|
Chromet 9MVN+ |
E9015-B9 |
E CrMo91 B |
|||
|
Chromet 9-B9 |
E9016-B9 |
E CrMo91 B |
|||
|
Chromet 91VNB |
E9015-B9 |
E CrMo91 B |
|||
|
TIG |
9CrMoV-N |
ER90S-B9 |
W CrMo91 |
||
|
MCW |
Cormet M91 |
E90C-B9 |
T69T15-0M-9C1MV |
||
|
SAW |
9CrMoV-N |
EB9 |
(S CrMo91) |
||
|
FCW |
Supercore F91 |
E91T1-B9 |
T69T1-1C/M-9C1MV |
||
|
E911 |
MMA |
Chromet 10MW |
-- |
-- |
|
|
FCW |
Cormet 10MW |
-- |
-- |
||
|
12CrMoV |
MMA |
Chromet 12MV |
-- |
E CrMoWV 12 1 B |
|
|
TIG |
12CrMoV |
-- |
W CrMoWV12 1 |
||
|
P92 |
MMA |
Chromet 92 |
-- |
-- |
|
|
TIG/SAW |
9CrWV |
-- |
-- |
||
|
FCW |
Supercore F92 |
-- |
-- |
||
|
T23 |
MMA |
Chromet 23L |
-- |
-- |
|
|
TIG |
2CrWV |
-- |
-- |
||
|
T24 |
TIG/SAW |
24CrMoV |
-- |
-- |
|
|
WB36 |
MMA |
1NiMo.B |
E9018-G |
-- |
|
|
TIG |
MnMo |
ER80S-D2 |
-- |
||
|
SAW |
SA1NiMo |
EF3 |
S3Ni1Mo |
||
|
W B2 / 921 |
MMA |
Chromet WB2 |
-- |
-- |
|
|
High toughness
1-3%Ni consumables for applications from –40°C down to about –75°C |
|||||
|
1Ni |
MMA |
Tufmet 1Ni.B |
E8018-C3 |
E 46 6 1Ni B 42 |
|
|
TIG/MIG |
1Ni |
ER80S-Ni1 |
(3Ni1) |
||
|
FCW |
Metcore DWA 55E |
E71T-5 |
T 42 4 PM1 H5 |
||
|
2Ni |
MMA |
Tufmet 2Ni.B |
E8018-C1 |
E 46 6 2Ni B 42 |
|
|
TIG/MIG |
2Ni |
ER80S-Ni2 |
(2Ni2) |
||
|
3Ni |
MMA |
Tufmet 3Ni.B |
E8018-C2 |
E 46 6 3Ni B 42 |
|
|
Consumables for high
strength low alloy steels requiring tensile strengths from 620MPa up to
825MPa |
|||||
|
MnMo |
MMA |
E9018-D1 |
E9018-D1 |
BS: MnMo.BH |
|
|
E10018-D2 |
E10018-D2 |
E 624 Mn1NiMo B |
|||
|
TIG/MIG |
MnMo |
ER80S-D2 |
4Mo |
||
|
NiMo |
MMA |
Tufmet 1NiMo |
E9016-G |
-- |
|
|
E11018-M |
E11018-M |
-- |
|||
|
Tufmet 3NiMo |
E12016-G |
-- |
|||
|
TIG/MIG |
ER110S-G |
ER110S-G |
Mn3Ni1CrMo |
||
|
NiMo |
MMA |
1NiMo.B |
E9018-G |
-- |
|
|
Consumables for copper
containing weathering steels eg. Corten |
|||||
|
Corten |
MMA |
1NiCu.B |
E8018-W2 |
E 55 18-NCC1 A |
|
|
TIG/MIG/SAW |
ER80S-W |
ER80S-G |
(Mn3Ni1Cu) |
||
|
Electrode for the
joining of rail steels using a slag-over-slag technique |
|||||
|
Rail |
MMA |
Railrod |
-- |
-- |
|
